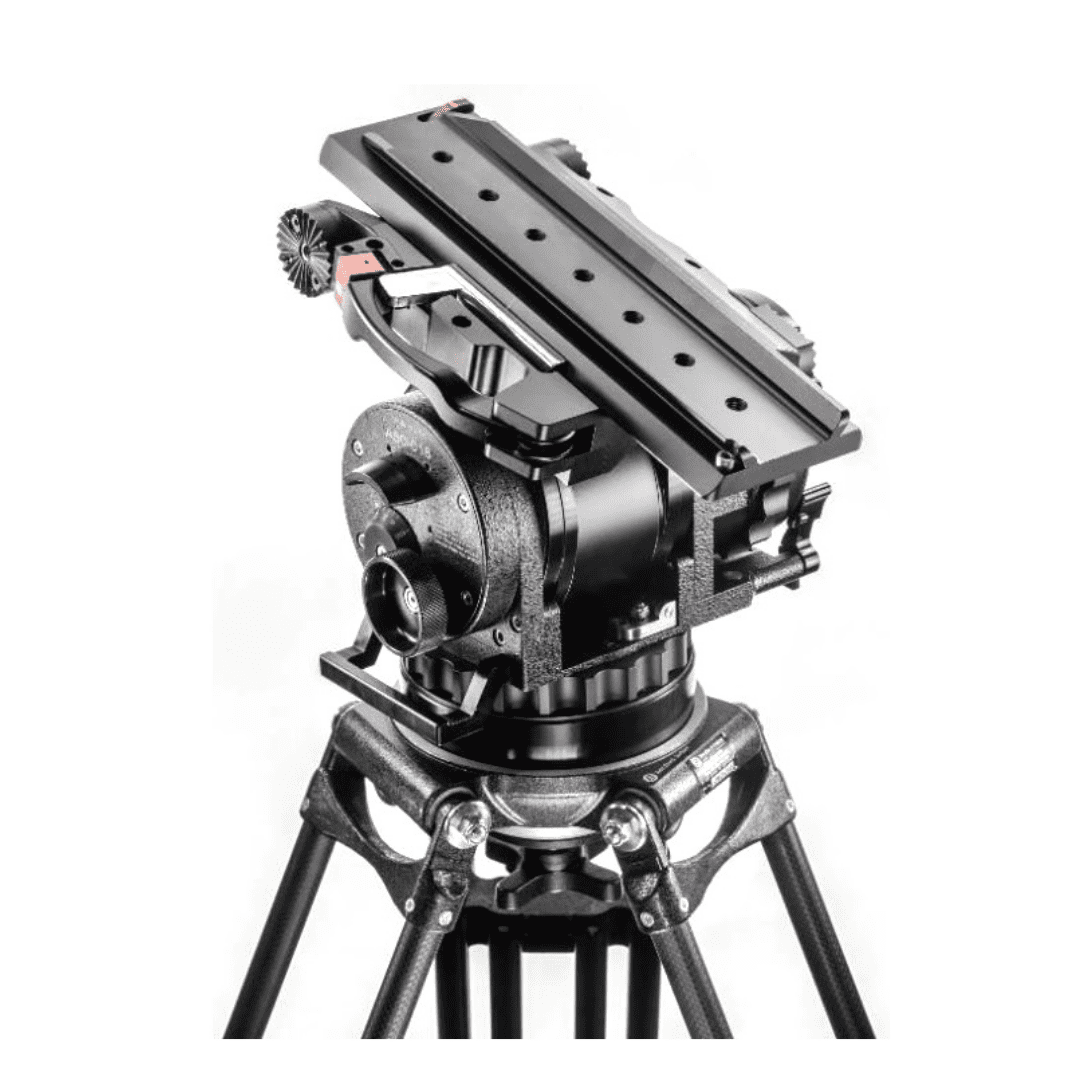

ATLAS 50S FLUID HEAD
Atlas 50S Fluid Head with Snap & Go side-loading mechanism, allows fast mounting and easy adjustment for camera slide plates, compatible with Arri Slide plates and O’Connor.
- Tilt range + & – 90 degrees
- Pan range 360 degrees continuous Pan bar mounts.
- Two on ratchet discs
- Lifting handles integrated
- Head bases 150 m/m or Mitchell ( adaptor)
- Stand off protection on both sides of the head.
- Sand proof sealed.
- Short plate has 7” / 18 cm movement. The Long plate has 13” / 33 cm movement.
- Fluid system, 7 steps pan & tilt with zero positions at either end of the scale.
- Counterbalance can also go into “Free” position.
- Spirit level with Tritium light source.
- Adjustable Eyepiece levelling bracket.
- Smooth positive braking on pan & tilt.
