17″ PANASONIC MONITOR
Description

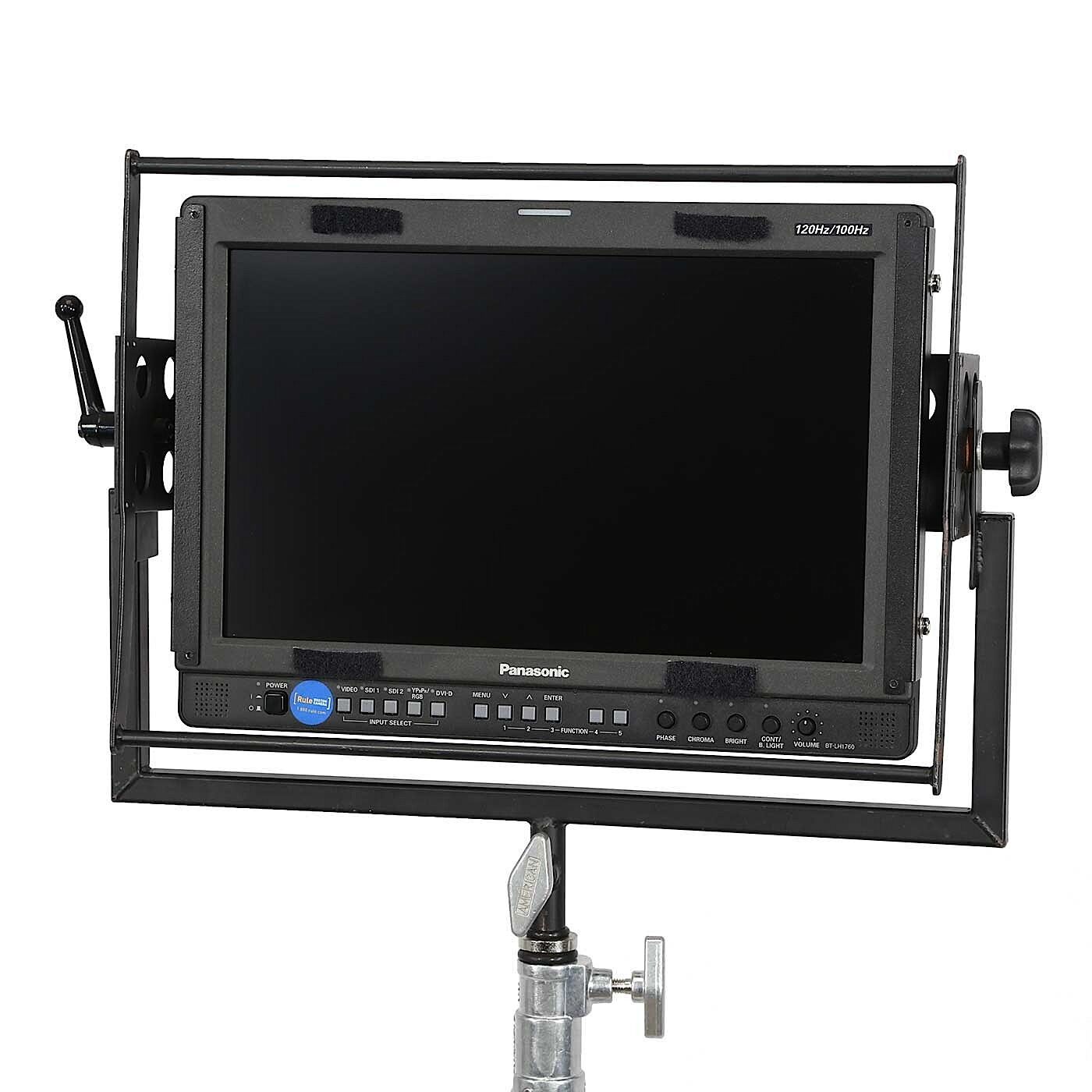

The Panasonic BT-LH1760W is a 17″ widescreen monitor designed for broadcast and studio applications. The LCD is equipped with double speed drive, helping eliminate motion blur.It utilizes advanced processing technology to reproduce images with color and contrast qualities once found only in CRT monitors. This model is capable of displaying all the HDTV formats and frame rates as well as being NTSC and PAL systems compatible.
The BT-LH1760W is suitable for broadcast and professional applications. The monitor compensates for RGB accuracy in 256 discrete steps. The rated gamma properties (g = 2.2) are reproduced and the gradation suitable for broadcasting is achieved. Color temperature is selectable from 3 preset values, 9300K, 6500K and 5600K as well as totally custom settings ranging from 3000K to 9300K.
A special circuit compensating for noise caused from diagonal lines has been developed for the BT-LH1760W. This processing reduces the occurrences of jagged noise in the diagonal direction, not just vertically in the field, by detecting correlations and making optimal interpolations.
